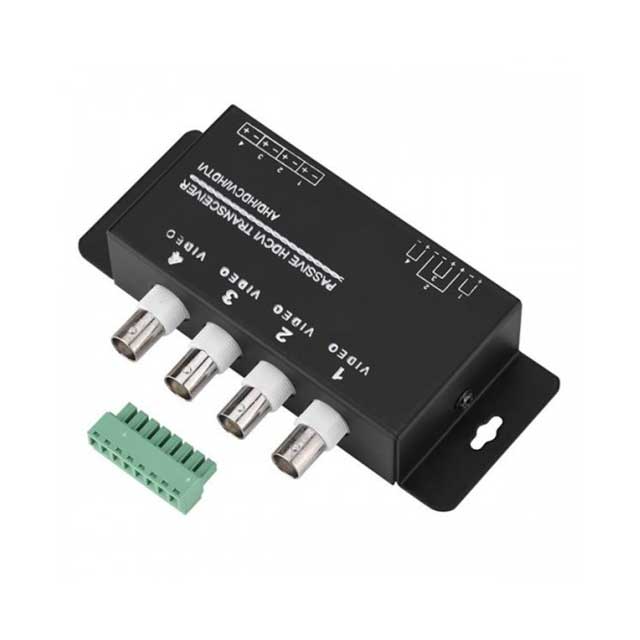

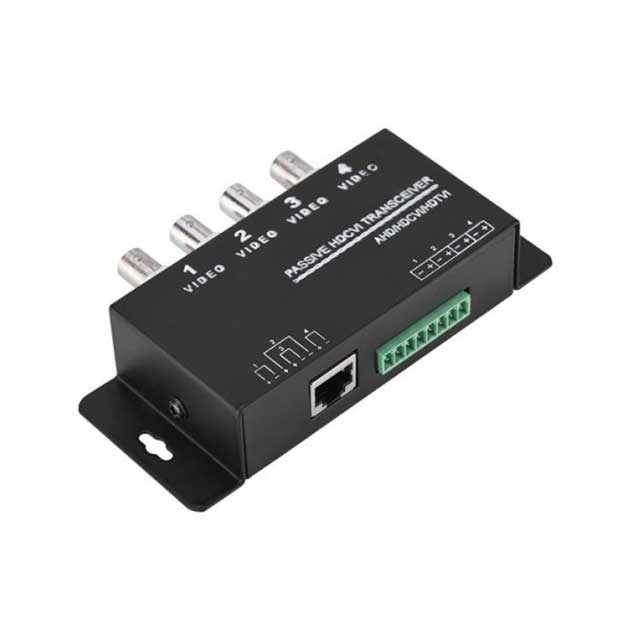

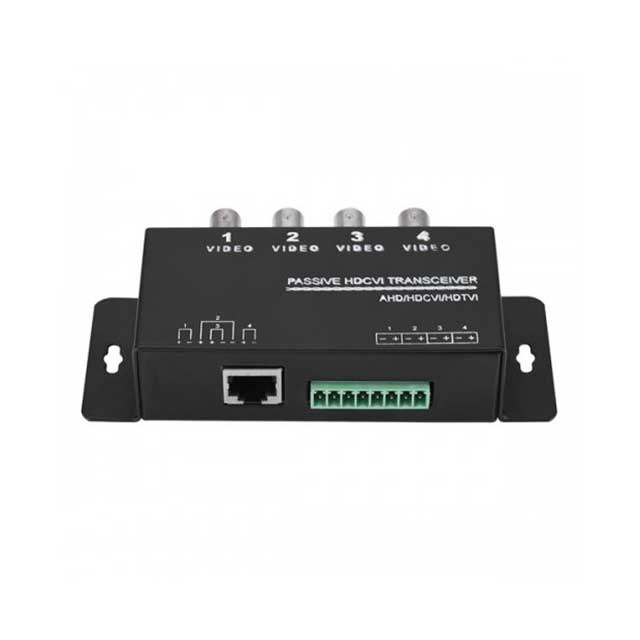

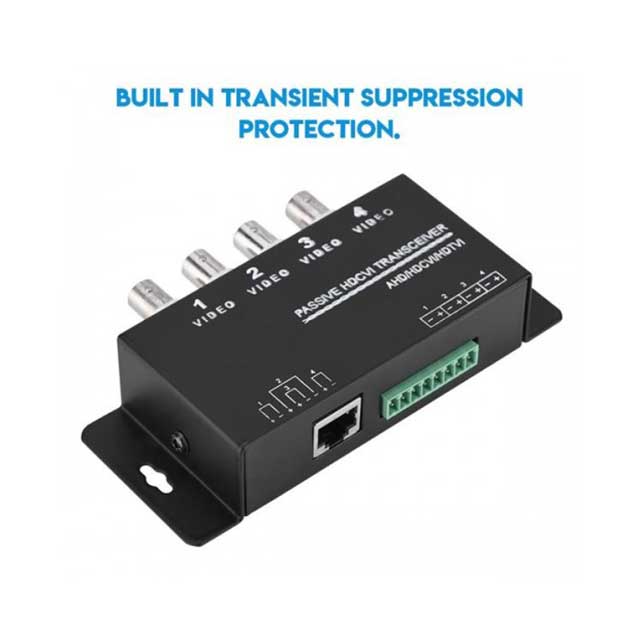

The BNC to RJ45 CAT5/6 UTP Passive Transceiver Video Balun is a reliable and efficient solution for transmitting CCTV video signals over long distances using standard CAT5/6 network cables. Designed for use with AHD, HDCVI, and HDTVI CCTV cameras, this 4-channel balun allows you to simplify your surveillance system’s cabling while maintaining high-quality video transmission.

Key Features:

• Wide Compatibility: Supports AHD, HDCVI, and HDTVI CCTV cameras, making it suitable for a wide range of surveillance setups.
• 4-Channel Support: Enables transmission of up to four video signals over a single CAT5/6 UTP (Unshielded Twisted Pair) cable, reducing the need for multiple cables and making installation more efficient.
• Passive Design: No need for external power, as the passive design allows for easy setup and reduces energy consumption.
• High-Quality Video Transmission: Ensures clear and high-definition video transmission with minimal signal degradation, even over long distances.
• Durable Construction: Built with high-quality materials for long-lasting performance in both indoor and outdoor environments.
• Cost-Effective: Provides an affordable solution for extending the reach of CCTV cameras while maintaining high video quality.

Specifications:

• Video Format: AHD, HDCVI, HDTVI (supports various CCTV camera types)
• Channels: 4-Channel Video Transmission (supports 4 CCTV cameras on a single cable)
• Transmission Range: Up to 300 meters (depending on the resolution and quality of the cable used)
• Cable Type: CAT5/6 UTP (Unshielded Twisted Pair) cable
• Connector Type: BNC (for CCTV camera connection) to RJ45 (for network cable connection)
• Power Supply: Passive (no external power required)
• Material: High-quality plastic and metal connectors for durability
• Dimensions: Compact design for easy installation (approx. 10 cm x 5 cm x 2 cm)
